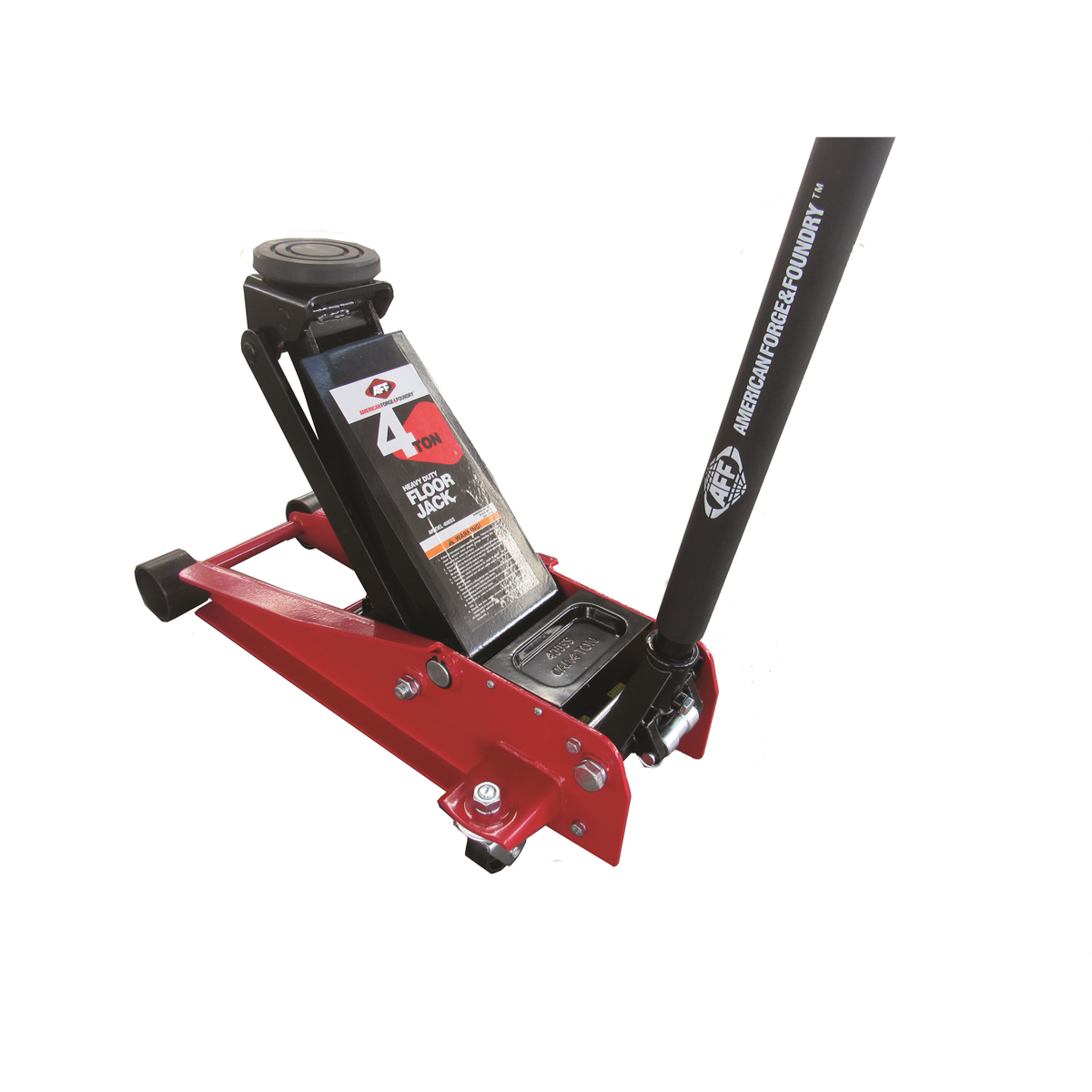

American Forge & Foundry Service Jack - 4 Ton Capacity - Lightning Lift - Short Chassis - 2 pc Handle - 4.3" Min H to 20.5" Max H - Heavy Duty

Product condition: New
American Forge & Foundry Service Jack - 4 Ton Capacity - Lightning™ Lift - Short Chassis - 2 pc Handle - 4.3" Min H to 20.5" Max H - Heavy Duty

Features and Benefits:

• Color: Red/Black
• Capacity: 4 Ton
• Minimum Height: 4.3"
• Maximum Height: 20.5"
• Power Type: Hydraulic
• Operation Type: Manual
• Quick Lift Feature: Double Pumper - Dual Pump Pistons
• Working Air Motor Pressure: N/A
• Release Assembly: U-Joint
• Chassis Type: Short Chassis Service Jack
• Chassis Length (in.): 28.82"
• Chassis Width (in.): 14.33"
• Handle Type: Straight
• Handle Length (in.): 50"
• Handle Type (Pcs): 2
• Saddle Size: 4.33"
• Includes Saddle Pad: Yes
• Saddle Pad Material: Rubber
• Handle Bump Protector: Yes
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: Yes
• Handle Docking Position: 90°
• Handle Locking Positions: N/A
• Service Parts Available: Yes
• Duty Level: Heavy Duty
• Weight (lb.): 105 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Twin hydraulic system for fast and efficient lifting. Universal joint technology provides a more controlled descent.
• Heavy duty pump, ram, and cylinders are precision machined and inspected to ensure long service life.
• High grade U-cup seals and high-pressure plunger for maximum performance.
• Rear mounted swivel casters for easy maneuverability. Pinned and padded saddle for extra vehicle protection.
• Flanged side plates for increased stability. Integrated parts tray keeps small components from getting lost. Meets ASME 2014 standards.



Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.


Warranty: 1 yr warranty on material and workmanship
